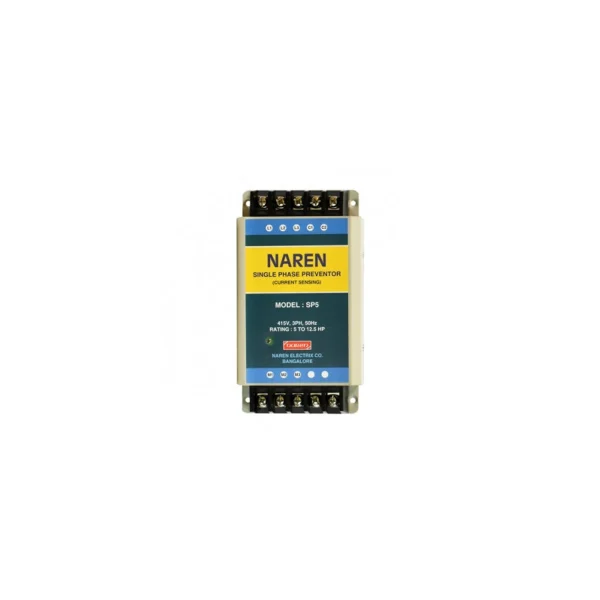

Naren Electrix Single Phase Preventors Current Sensing Type Model SP5 (Sona Type) (5 to 12.5HP)

Sold By : Naren supratech

720.00

25% Off
Close
Price Summary
  • 960.00
  • 720.00
  • 25%
  • 720.00
  • Overall you save 240.00 (25%) on this product
In Stock
Highlights:

Naren Electrix Single Phase Preventors Current Sensing Type Model SP5 (Sona Type) (5 to 12.5HP)

Compare
69 People viewing this product right now!
Guaranteed Safe Checkout Trues Badge
Category: Brand:
Description

Product description

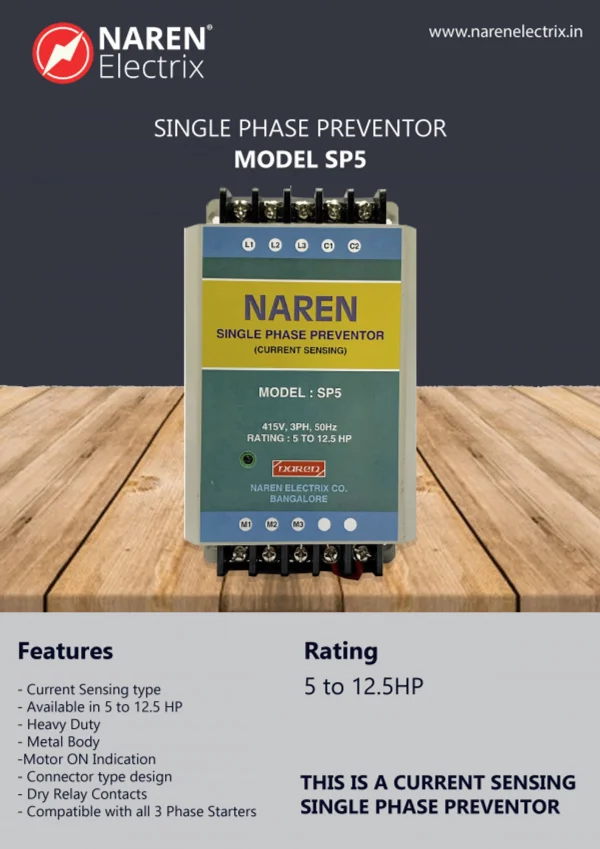

Features:

Current Sensing type
Available in 5 to 12.5 HP
Heavy Duty
Metal Body
Motor ON Indication
Connector type design
Dry Relay Contacts
Compatible with all 3 Phase Starters

Rating:

5 to 12.5HP

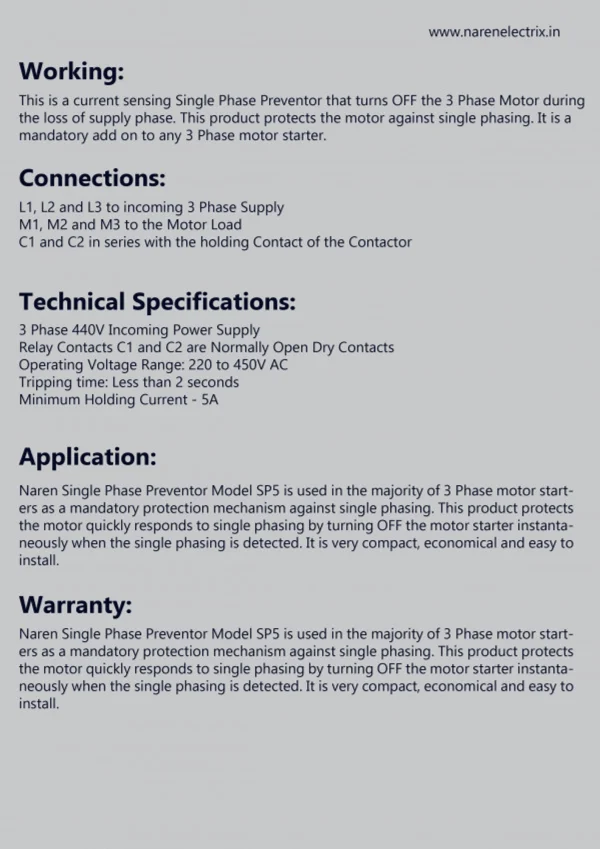

This is a current sensing Single Phase Preventor that turns OFF the 3 Phase Motor during the loss of supply phase. This product protects the motor against single phasing. It is a mandatory add on to any 3 Phase motor starter.

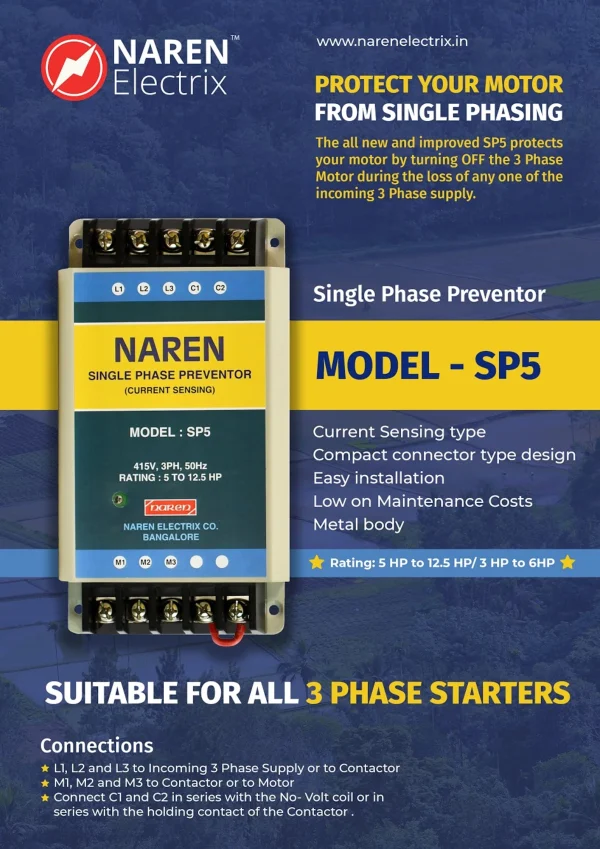

Connections:

L1, L2 and L3 to incoming 3 Phase Supply

M1, M2 and M3 to the Motor Load

C1 and C2 in series with the holding Contact of the Contactor

Technical Specifications:

3 Phase 440V Incoming Power Supply
Relay Contacts C1 and C2 are Normally Open Dry Contacts
Operating Voltage Range: 220 to 450V AC
Tripping time: Less than 2 seconds
Minimum Holding Current – 5A

Application:

Naren Single Phase Preventor Model SP5 is used in the majority of 3 Phase motor starters as a mandatory protection mechanism against single phasing. This product protects the motor quickly responds to single phasing by turning OFF the motor starter instantaneously when the single phasing is detected. It is very compact, economical and easy to install.

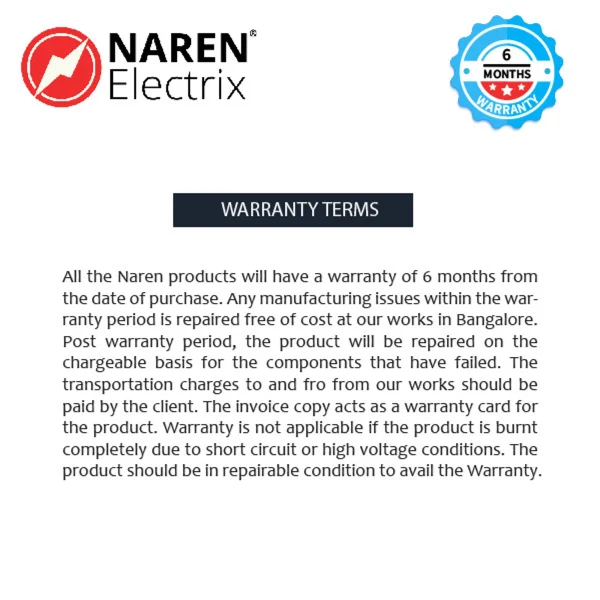

WARRANTY:

This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer.
