Naren Electrix Motor OFF Timers (OFF Delay Timers) For Monoblock/Openwell Pumps Motor OFF Timer

Sold By : Naren supratech

2,250.00

25% Off
Close
Price Summary
  • 3,000.00
  • 2,250.00
  • 25%
  • 2,250.00
  • Overall you save 750.00 (25%) on this product
In Stock
Highlights:

Naren Electrix Motor OFF Timers (OFF Delay Timers) For Monoblock/Openwell Pumps Motor OFF Timer

Compare
125 People viewing this product right now!
Guaranteed Safe Checkout Trues Badge
Category: Brand:
Description

Product description

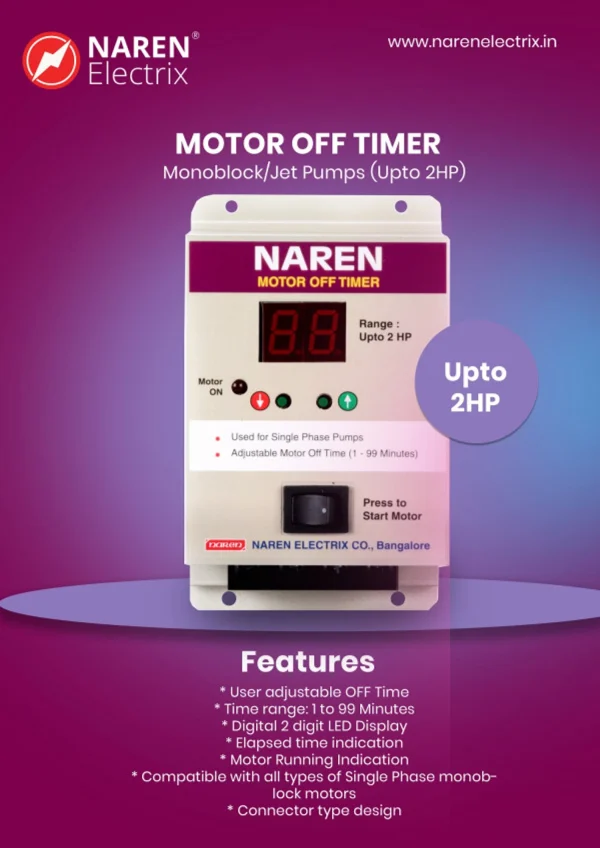

Features:

User adjustable OFF Time
Time range: 1 to 99 Minutes
Digital 2 digit LED Display
Elapsed time indication
Motor Running Indication
Compatible with all types of Single Phase monoblock motors
Connector type design

This product is a timer that will turn OFF your Single Phase Monoblock pump based on the timings adjusted by the user. The OFF time or the running time is the total time after which the motor is supposed to be turned OFF. The time can be adjusted by the user using the keys provided on the device. The elapsed time can also be seen on the display provided.

Connections:

Connectors 1 and 2 to incoming Phase and Neutral (220V) (Load wires)
Connectors 3 and 4 to Outgoing Motor/Starter (Load wires)
Note: Please make sure the connections are tight

Operation:

The timer display powers up as soon as the power supply is ON. The timer displays the set OFF time. Motor can be turned ON by pressing the black push button provided on the bottom. The display starts to down count as soon as the motor starts. The motor turns OFF once the set time is complete.

Technical Specifications:

Minimum operating Voltage 150V
Maximum operating voltage 250V

Settings:

Press the Push button on the right hand side (with the up arrow mark) to increase the time. The Time displayed on the display will be in minutes.
Press the Push button on the left hand side (with the down arrow mark) to increase the time. The Time displayed on the display will be in minutes.
Wait for the number to give a blink which will ensure the time is saved.

Applications:

Domestic applications
In conditions where the availability of water is low
In conditions where there is excess water and it is sufficient if the motor is run only for a specific time
Hydroponics
Commercial Complexes
Horticulture

WARRANTY:

This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer.
