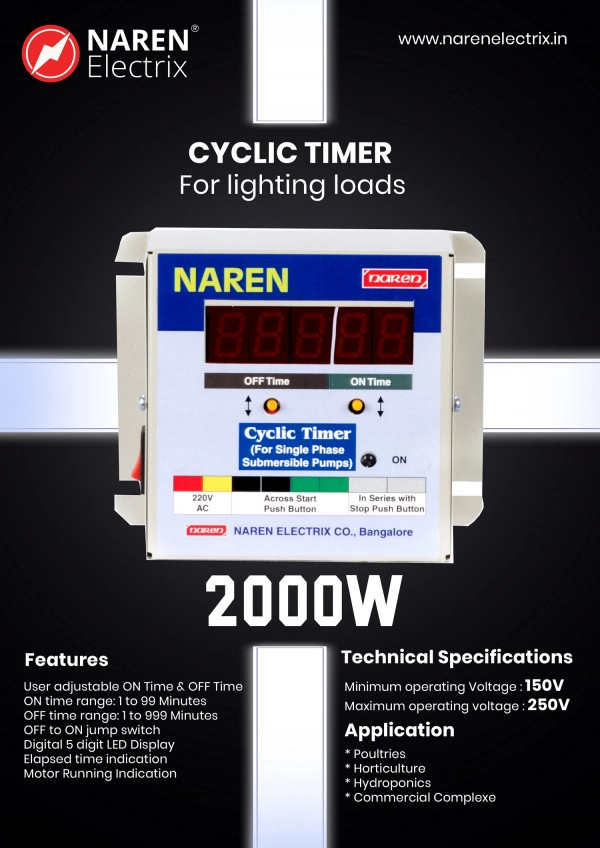

Naren Electrix Cyclic Timers For Lighting Loads CT-CONT 3KW

Sold By : Naren supratech

3,900.00

25% Off
Close
Price Summary
  • 5,200.00
  • 3,900.00
  • 25%
  • 3,900.00
  • Overall you save 1,300.00 (25%) on this product
In Stock
Highlights:

Naren Electrix Cyclic Timers For Lighting Loads CT-CONT 3KW

Compare
194 People viewing this product right now!
Guaranteed Safe Checkout Trues Badge
Category: Brand:
Description

Product description
Features:

User adjustable ON Time and OFF Time
ON time range: 1 to 99 Minutes
OFF time range: 1 to 999 Minutes
OFF to ON jump switch
Digital 5 digit LED Display
Elapsed time indication
Motor Running Indication
Wire type design
Used in hydroponics, horticulture

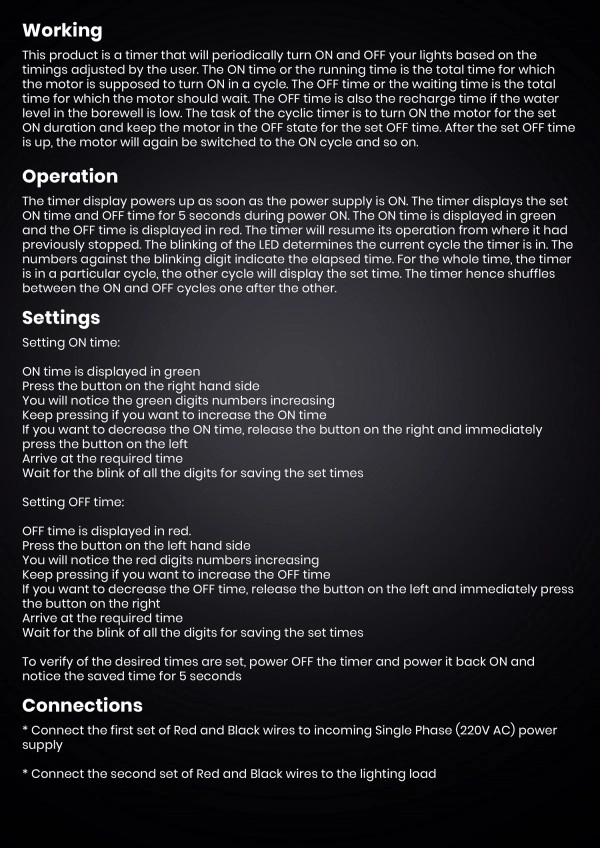

This product is a timer that will periodically turn ON and OFF your lights based on the timings adjusted by the user. The ON time or the running time is the total time for which the motor is supposed to turn ON in a cycle. The OFF time or the waiting time is the total time for which the motor should wait. The OFF time is also the recharge time if the water level in the borewell is low. The task of the cyclic timer is to turn ON the motor for the set ON duration and keep the motor in the OFF state for the set OFF time. After the set OFF time is up, the motor will again be switched to the ON cycle and so on.

Connections:

Connect the first set of Red and Black wires to incoming Single Phase (220V AC) power supply
Connect the second set of Red and Black wires to motor cables/ to your motor starter (MCB type)

Operation:

The timer display powers up as soon as the power supply is ON. The timer displays the set ON time and OFF time for 5 seconds during power ON. The ON time is displayed in green and the OFF time is displayed in red. The timer will resume its operation from where it had previously stopped. The blinking of the LED determines the current cycle the timer is in. The numbers against the blinking digit indicate the elapsed time. For the whole time, the timer is in a particular cycle, the other cycle will display the set time. The timer hence shuffles between the ON and OFF cycles one after the other.

Technical Specifications:

Minimum operating Voltage 150V
Maximum operating voltage 250V

Setting:

Setting ON time:

ON time is displayed in green
Press the button on the right hand side
You will notice the green digits numbers increasing
Keep pressing if you want to increase the ON time
If you want to decrease the ON time, release the button on the right and immediately press the button on the left
Arrive at the required time
Wait for the blink of all the digits for saving the set times

Setting OFF time:

OFF time is displayed in red.
Press the button on the left hand side
You will notice the red digits numbers increasing
Keep pressing if you want to increase the OFF time
If you want to decrease the OFF time, release the button on the left and immediately press the button on the right
Arrive at the required time
Wait for the blink of all the digits for saving the set times
To verify of the desired times are set, power OFF the timer and power it back ON and notice the saved time for 5 seconds

Applications:

Poultries
Horticulture
Hydroponics
Commercial Complexes
