Naren Electrix Cyclic Timers For 3 Phase Cyclic Timer and PFR

Compare
157 People viewing this product right now!
Guaranteed Safe Checkout Trues Badge
Category: Brand:
Description

Product description
Features:

User adjustable ON Time and OFF Time
ON time range: 1 to 99 Minutes
OFF time range: 1 to 999 Minutes
Built in Phase Failure Relay
Motor ON only when 3 Phase supply is OK
Motor automatically OFF during loss of Phase
OFF to ON jump switch
Digital 5 digit LED Display
Elapsed time indication
Motor Running Indication
Compatible with all types of Motor starters

This product is a timer that will periodically turn ON and OFF your 3 Phase Submersible pump based on the timings adjusted by the user. The ON time or the running time is the total time for which the motor is supposed to turn ON in a cycle. The OFF time or the waiting time is the total time for which the motor should wait. The OFF time is also the recharge time if the water level in the borewell is low. The task of the cyclic timer is to turn ON the motor for the set ON duration and keep the motor in the OFF state for the set OFF time. After the set OFF time is up, the motor will again be switched to the ON cycle and so on. The advantage of having the cyclic timer and PFR is that the motor is allowed to run only if the 3 Phase supply is present.

Connections:

Connect R,Y and B connectors to incoming 3 Phase power supply
Connect C1 and C2 across (in parallel to) the ON/Start Push button of your motor starter
Connect C3 and C4 in series to the OFF/Stop Push button of your motor starter
Observe the light on the PFR, if the light is blinking or absent, interchange the R and Y lines (Connectors 1 and 2)

Operation:

The timer display powers up as soon the power supply is ON. The timer display the set ON time and OFF time for 5 seconds during power ON. The ON time is displayed in green and the OFF time is displayed in red. The timer will resume its operation from where it had previously stopped. The blinking of the LED determines the current cycle the timer is in. The numbers against the blinking digit indicates the elapsed time. For the whole time, the timer is in a particular cycle, the other cycle will display the set time. The timer hence shuffles between the ON and OFF cycles one after the other.

Technical Specifications:

R,Y,B is the 440V 3 Phase Auxiliary power supply
C1 and C2 are Normally open dry contacts
C3 and C4 are Normally closed dry contacts
Minimum wire size required to connect 0.5 sq. mm
Minimum operating Voltage 250V
Maximum operating voltage 460V

Setting:

Setting ON time:

ON time is displayed in green
Press the button on the right hand side
You will notice the green digits numbers increasing
Keep pressing if you want to increase the ON time
If you want to decrease the ON time, release the button on the right and immediately press the button on the left
Arrive at the required time
Wait for the blink of all the digits for saving the set times

Setting OFF time:

OFF time is displayed in red.
Press the button on the left hand side
You will notice the red digits numbers increasing
Keep pressing if you want to increase the OFF time
If you want to decrease the OFF time, release the button on the left and immediately press the button on the right
Arrive at the required time
Wait for the blink of all the digits for saving the set times
To verify of the desired times are set, power OFF the timer and power it back ON and notice the saved time for 5 seconds

Applications:

In conditions where the availability of water in the bore well is low
In conditions where there is excess water and it is sufficient if the motor is run only for a specific time
Hydroponics
Commercial Complexe
Horticulture
To keep the domestic borewell motor in running condition every few days
Municipal water distribution systems

WARRANTY:

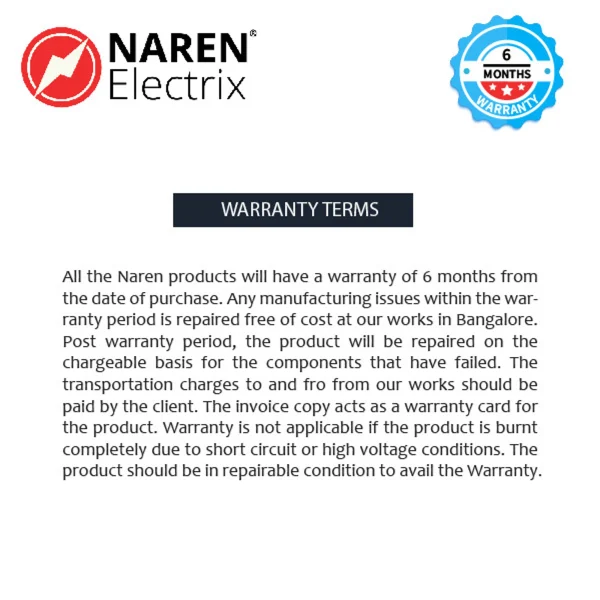

This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer.
