Naren Electrix Auto Start Units For Single Phase Model CONT-23 (Upto 5HP)

Sold By : Naren supratech

1,725.00

25% Off
Close
Price Summary
  • 2,300.00
  • 1,725.00
  • 25%
  • 1,725.00
  • Overall you save 575.00 (25%) on this product
In Stock
Highlights:

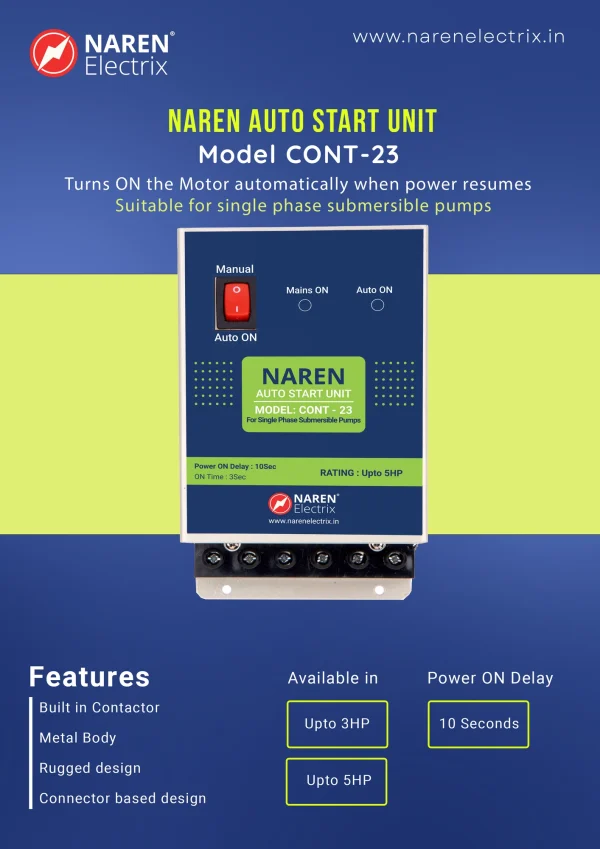

Naren Electrix Auto Start Units For Single Phase Model CONT-23 (Upto 5HP)

Compare
162 People viewing this product right now!
Guaranteed Safe Checkout Trues Badge
Category: Brand:
Description

Product description

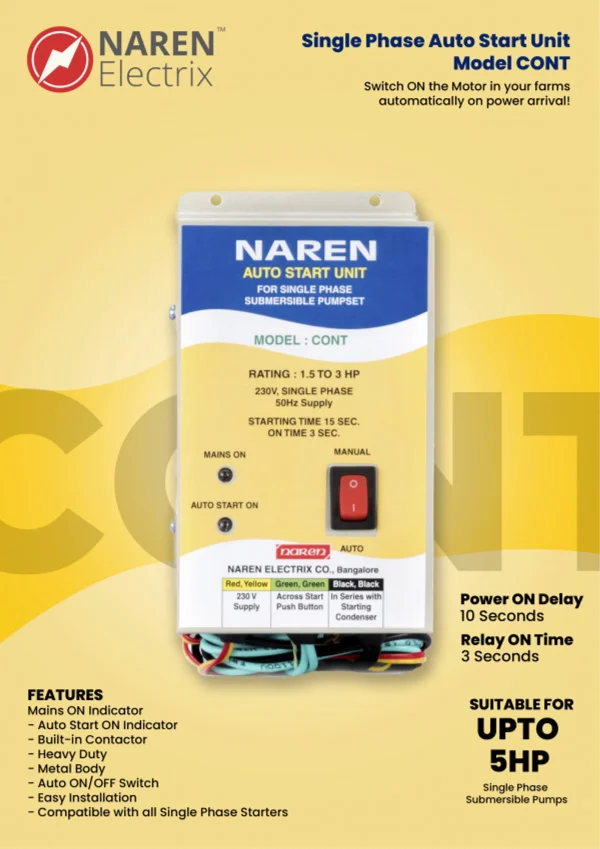

Features:

Mains Indicator
Auto Start ON Indicator
Built-in Contactor
Heavy Duty
Metal Body
Auto ON/OFF Switch
Easy Installation
Compatible with all Single Phase Starters

Rating:

Suitable for all Single Phase Motor Starters Up to 5 HP

This Product turns ON the Single Phase motor on the arrival of Power Supply. The device first checks if the incoming power supply is right. If yes, it will turn ON the pump after the power on delay.

Power ON Delay: 10 Seconds

Relay ON Time: 3 Seconds

Dimensions:

Weight:1200 Grams

Length: 170 mm

Breadth: 82 mm

Height: 105 mm

Connections:

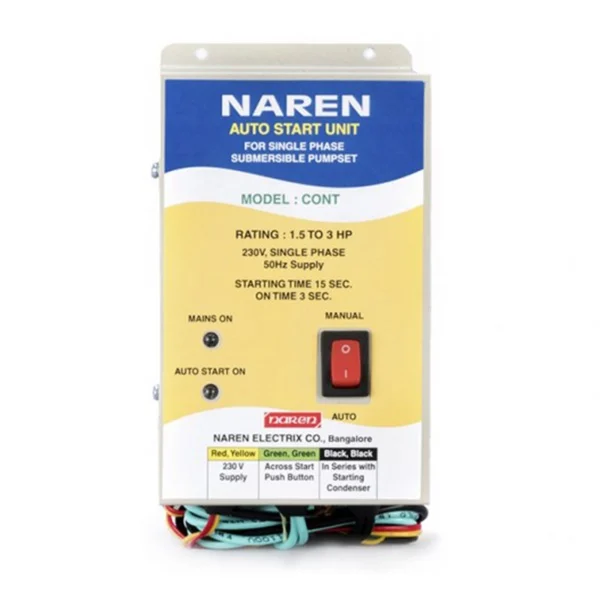

Red and Yellow Wires to the Incoming 220V Single Phase Power Supply

Green Wires across (in parallel to) the first element of Start/ON Push Button of your motor starter

Black Wires across (in parallel to) the second element of the Start/ON Push Button of your motor starter

Technical Specifications:

Single Phase 220V Incoming Power Supply
Green and Black wires are the Normally Open Dry Contacts
Operating Voltage Range: 150 to 250V AC

Application:

Naren Auto Start Unit Model CONT is used in agricultural fields that require the Single Phase motor to be turned ON as soon as the power Phase supply has arrived. It is a necessity in many agricultural fields to turn ON the motor for as long as the proper power is present. This product is perfectly suitable for such applications. It is very compact, easy to install and serves the purpose.

WARRANTY:

This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer.
