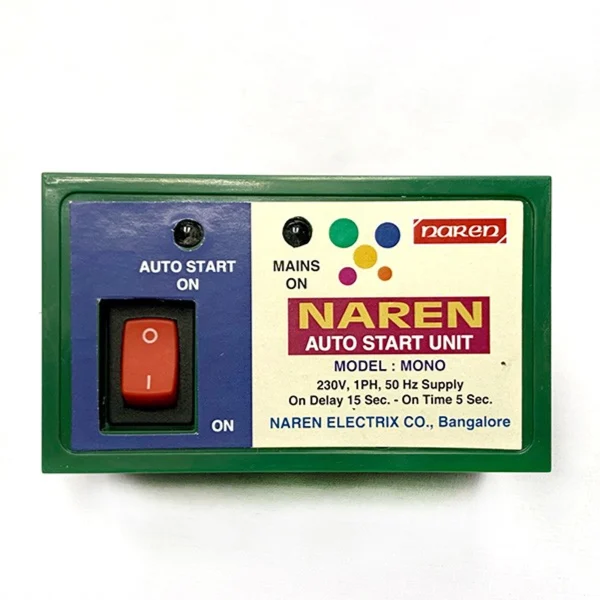

Naren Electrix Auto Start Units For Monoblock Model Mono 440V

Sold By : Naren supratech

570.00

25% Off
Close
Price Summary
  • 760.00
  • 570.00
  • 25%
  • 570.00
  • Overall you save 190.00 (25%) on this product
In Stock
Highlights:

Naren Electrix Auto Start Units For Monoblock Model Mono 440V

Compare
111 People viewing this product right now!
Guaranteed Safe Checkout Trues Badge
Category: Brand:
Description

Product description
Features:

Mains Indicator
Auto Start ON Indicator
Compact design
ABS Body
Auto ON/OFF Switch
Easy Installation
Compatible with all Monblock Starters

Rating:

Suitable for all 2 Phase Monoblock Motor Starters from 1HP to 5HP

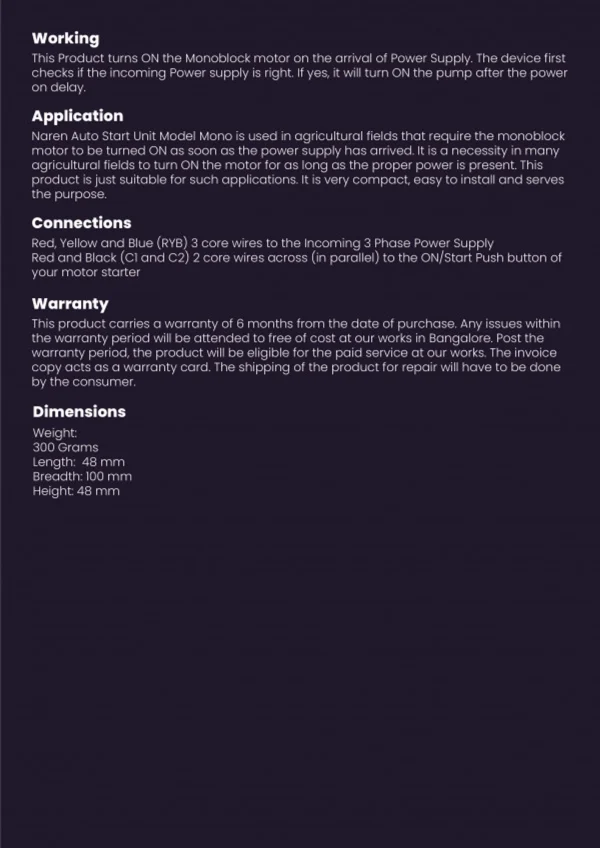

This Product turns ON the 2 Phase Monoblock motor on the arrival of 2 Phase power Supply. The device first checks if the incoming power supply is right. If yes, it will turn ON the pump after the power on delay.

Power ON Delay: 10 Seconds

Relay ON Time: 5 Seconds

Dimensions:

Weight:300 Grams

Length: 48 mm

Breadth: 100 mm

Height: 48 mm

Connections:

Red, Yellow and Blue (RYB) 3 core wires to the Incoming 3 Phase Power Supply

Red and Black (C1 and C2) 2 core wires across (in parallel) to the ON/Start Push button of your motor starter

Technical Specifications:

2 Phase 440V Incoming Power Supply
Relay Contacts C1 and C2 are Normally Open Dry Contacts
Operating Voltage Range: 250 to 450V AC
Minimum Wire length required for RYB and C1 C2 is 14/0.2 mm

Application:

Naren Auto Start Unit Model Mono is used in agricultural fields that require the 2 Phase motor to be turned ON as soon as the power supply has arrived. It is a necessity in many agricultural fields to turn ON the motor for as long as the proper power is present. This product is just tailor made for such applications. It is very compact, easy to install and serves the purpose.

WARRANTY:

This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer.
