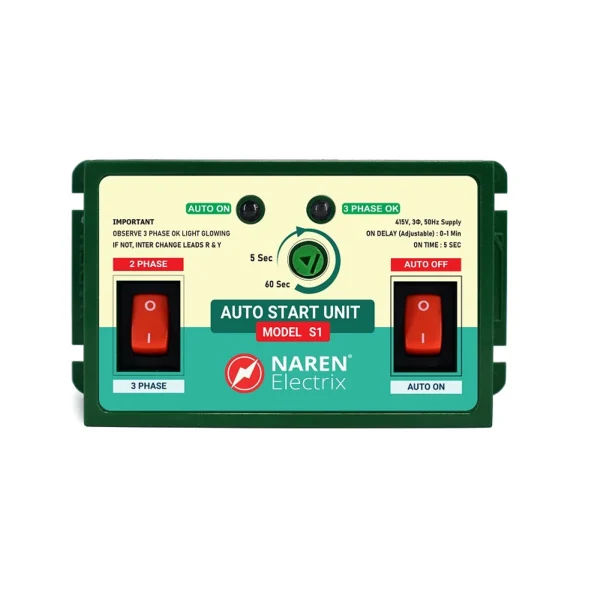

Naren Electrix Auto Start Units For 3 Phase Model S1

Sold By : Naren supratech

653.00

25% Off
Close
Price Summary
  • 870.00
  • 653.00
  • 25%
  • 653.00
  • Overall you save 217.00 (25%) on this product
In Stock
Highlights:

Naren Electrix Auto Start Units For 3 Phase Model S1

Compare
81 People viewing this product right now!
Guaranteed Safe Checkout Trues Badge
Category: Brand:
Description

Product description

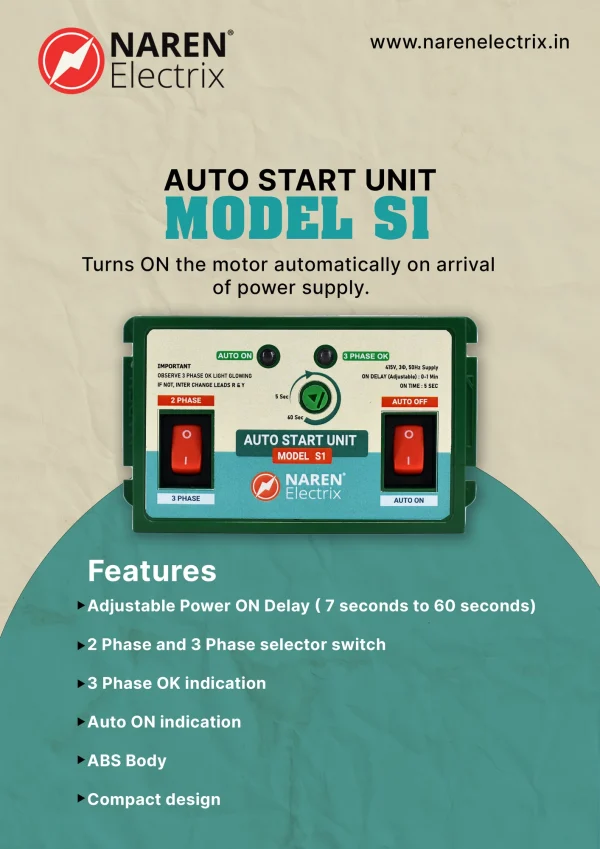

Features:

3 Phase OK Indicator
Auto Start ON Indicator
Adjustable Power ON Delay from 5 to 60 Seconds
Compact design
ABS Body
Auto ON/OFF Switch
3 Phase/2 Phase Switch
Easy Installation
Wire Type Design
Compatible with all 3 Phase Starters and 2 Phase Monoblock Starters

Rating:

Power ON Delay: User Adjustable from 5 to 60 Seconds

SRelay ON Time: 5 Seconds

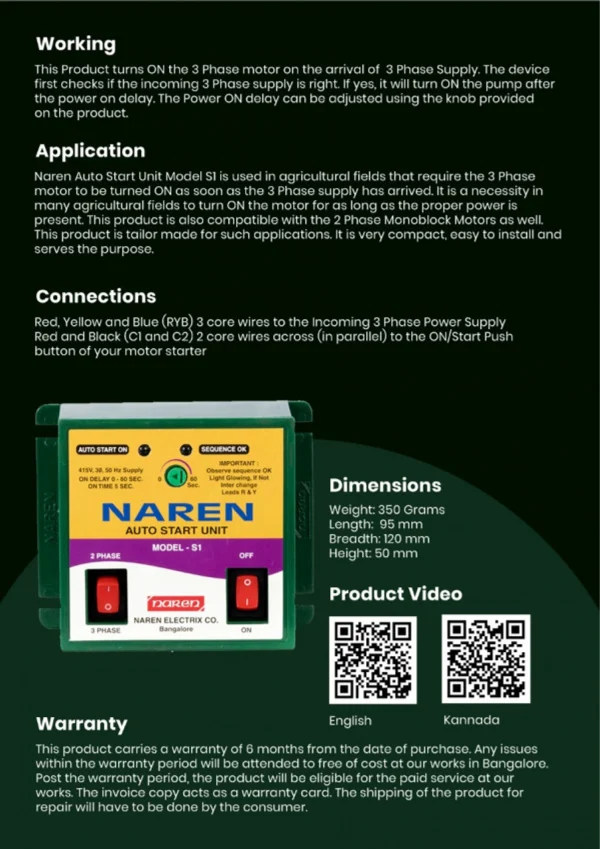

This Product turns ON the 3 Phase motor on the arrival of 3 Phase Supply. The device first checks if the incoming 3 Phase supply is right. If yes, it will turn ON the pump after the power on delay. The Power ON delay can be adjusted using the knob provided on the product.

Power ON Delay: User Adjustable from 5 to 60 Seconds

Relay ON Time: 5 Seconds

Dimensions:

Weight:350 Grams

Length: 95 mm

Breadth: 120 mm

Height: 50 mm

Connections:

Red, Yellow and Blue (RYB) 3 core wires to the Incoming 3 Phase Power Supply

Red and Black (C1 and C2) 2 core wires across (in parallel) to the ON/Start Push button of your motor starter

Application:

Naren Auto Start Unit Model S1 is used in agricultural fields that require the 3 Phase motor to be turned ON as soon as the 3 Phase supply has arrived. It is a necessity in many agricultural fields to turn ON the motor for as long as the proper power is present. This product is also compatible with the 2 Phase Monoblock Motors as well. This product is tailor made for such applications. It is very compact, easy to install and serves the purpose.

WARRANTY:

This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer.
